4/3C MAH Schlammpumpe
Type: Centrifugal Discharge: 25-400mmAccessible particles: 10-120mmCapacity: 8-3500m³/hHead: 2-70mPower: 4-1000kw
Produkteinführung
The versatile, fully lined Heavy duty MAH wear resistant centrifugal horizontal slurry pump offers a wide range of configurations allowing the pump to be tailored to the customer's specific application
| 4/3C MAH Schlammpumpe | 4/3C MAH Schlammpumpe | |
|

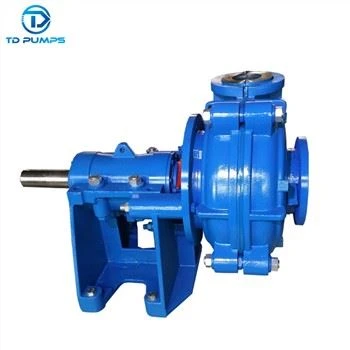

4/3C MAH slurry pump series pumps are heavy duty horizontal slurry pumps designed to handle the transfer of abrasive and high density slurry in mining and heavy industry. MAHR is a rubber lined kind,it is used for corrosive liquid. Hochleistungspumpanwendungen Die Hochleistungs-MAH-Pumpenreihe ist für das kontinuierliche Pumpen von hochabrasiven/dichten Schlämmen in Prozessen von der Hydrozyklonbeschickung bis zu Mahlgut, Flotation und Rückständen in Mineralverarbeitungsanlagen sowie anderen industriellen Anwendungen ausgelegt. • Ball mill discharge • Bottom/fly ash, lime grinding
• Coal • Coarse sand • Coarse tailings
• Dredging • FGD
• Fine tailings • Flotation
• Heavy media • Minerals concentrate
• Mineral sands • Ni acid slurry
• Oil sands • Phosphoric acid
• Phosphate matrix • Process chemical
• Pulp and paper • Rod mill discharge
• SAG mill discharge • Wet crushers
|
Konstruktionsmerkmale und Vorteile
• Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime
• Ductile iron fully lined casing provides durability, strength, safety, and long service life
• Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs
• Large, open internal passages designed to reduce internal velocities, maximise wear life and lower operating costs
• Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximise wear life
• Minimal shaft/impeller overhang reduces shaft deflection and increases packing life
• Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the pump, resulting in reliable operation and prolonged bearing life
• Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime • Optional dry running shaft seal reduces or eliminates flush water requirements
• Effective expeller prolongs packing life while reducing or eliminating flush water requirement
• Now featuring throatbush and impeller combination designed to enhance efficiency and improve wear performance
• Interchangeability of seal arrangements – full flush, low flow, centrifugal, or mechanical seals may be fitted to any sized pump
|
Mehr Text geht hier.
4/3C MAH Schlammpumpe
